Heavy duty industrial gearbox Rossi
These products are suitable for the heaviest loads, offering versatility and ease of use, a wide range of sizes, service and cost effectiveness.
TECHNICAL CHARACTERISTICS
- Discover the advantages of our gear units with parallel or orthogonal axes
- Universal cast iron housing suitable for horizontal and vertical mounting with integrated feet
- Two-piece housing with reinforcement ribs for high structural rigidity and large oil capacity
- 12 sizes up to a torque of 1mio Nm, a range of gear solutions and non-standard designs
- Cylindrical gears with 2, 3 and 4 stages
- Drives with 2, 3 and 4-stage rack and pinion gears
- GLEASON spiral bevel gears with ground profile
Advantages
- H class industrial gearbox is the best gearbox for heavy duty applications
- One of the widest torque ranges from one supplier
- Customized solutions on demand, starting with a standard modular design
- Replacement for reducers Flender, SEW, PIV and others
- Optimized design for heavy industry applications
EXAMPLES OF USE
An example of the use of the ROSSI industrial toothed angle reducer in an anti-explosion design Atex for a torque >100,000 Nm, engine power 55kW to drive a chain conveyor for transporting coal in a thermal power plant. The reducer is connected to the conveyor via an elastic coupling with rubber plugs.
An example of using a ROSSI industrial gear reducer with an auxiliary drive in the event of a main engine failure. Drive motor power 110kW, torque >100,000Nm. The reducer and the electric motor are connected via a hydrodynamic coupling, which ensures a slow soft start and prevents resp. protects against mechanical overload.

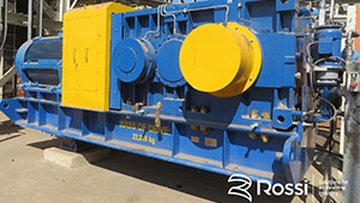

Rossi drive station, rated engine power P=900kW, output torque Mt2=400,000Nm, connection of reducer and electric motor via hydrodynamic coupling for soft start. The drive station rests on a metal base, which is elastically clamped via a torque lever. The reducer has a hollow shaft with a clamping disc and is directly mounted on the shaft of the working machine.
