Helical inline gear reducers Rossi
Equipped with high efficiency compact electric motors IE3 (IEC or NEMA), available with frequency converter.
Made in ROSSI: quality for a perfect fit.
TECHNICAL DATA
- Completely interchangeable - same connection dimensions as SEW Eurodrive, Siemens, Lenze...
- Made in Modani Italy-EU
- With robust nodular cast iron housing
- Gear accuracy according to DIN/ISO class 6 or better
- New compact electric motors of efficiency class IE3, IE4
Advantages
- Plug & Play interchangeability
- Top quality, minimal maintenance
- High performance and reliability: minimal deformation, no gear misalignment, no vibration and low noise
- Energy saving, low noise, reduced transparency
- Superior efficiency, long service life and no oil leaks
- Up to 12% higher rated torque
EXAMPLES OF USE
An example of the use of ROSSI helical inline gear reducers in a rolling mill to drive rollers. Special dedicated ROSSI "roller table" electric motors with ROSSI linear gear reducers for high starting torques and shock loads. Electric motors are closed cast iron design without fan, cooling by radiation through radial fins - IC410. For the most difficult working conditions in the ironworks (24/7 work, high temp., dust, emulsions, etc.) Speed regulation in the range from 0 rpm to 200 rpm.
An example of the use of ROSSI helical inline reducers in the wood industry to drive a transport line. The motors are frequency regulated in the range from 30 rpm to 200 rpm. The toothed linear reducers are connected to the rollers via toothed couplings.

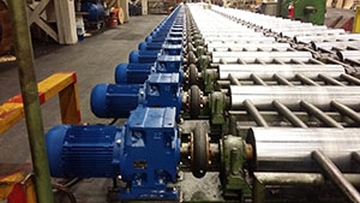

An example of the use of ROSSI helical inline gear reducers in the production of aluminum. The linear reducers are connected to the rollers via elastic flexible Periflex couplings, in order to compensate for maximum shock loads. The motors are frequency regulated in the range from 0 rpm to 200 rpm.
